Weld stress and fatigue in a welded chassis

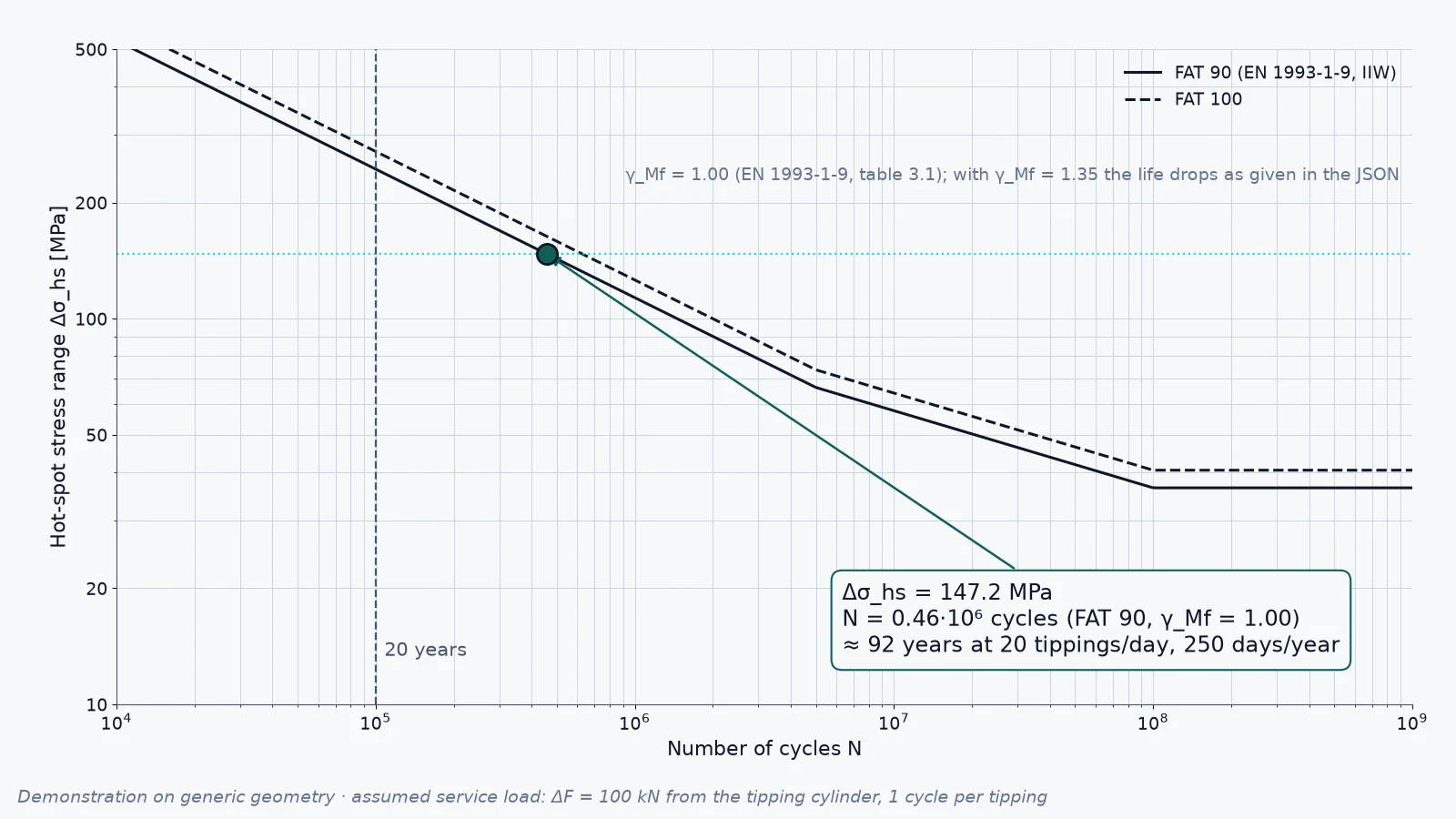

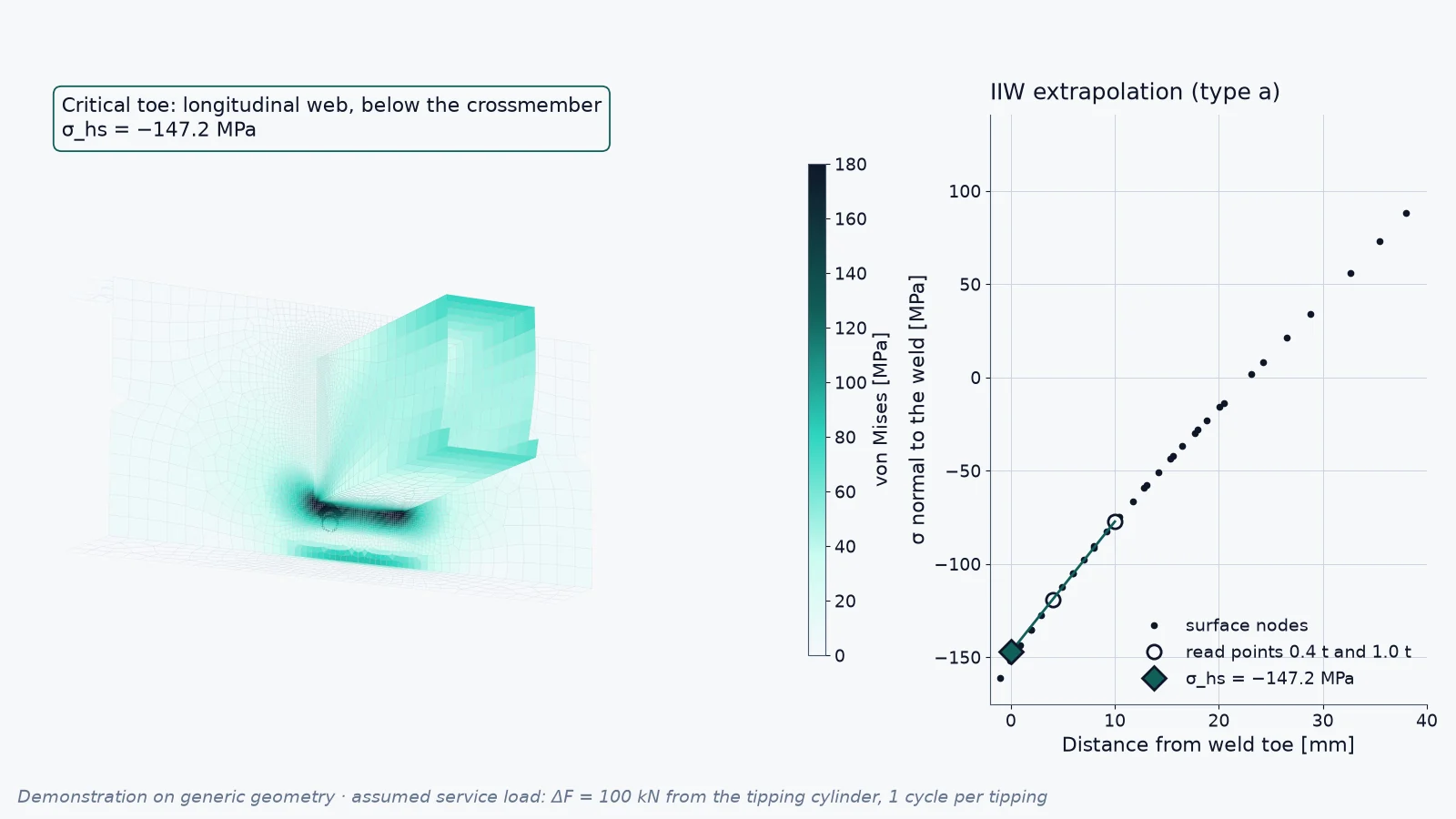

Demonstration on generic geometry: tipper chassis with the load stated as an assumption and weld fatigue with finite elements. (1/2)Demonstration on generic geometry: tipper chassis with the load stated as an assumption and weld fatigue with finite elements. (2/2)
Demonstration on generic geometry: tipper chassis with the load stated as an assumption and weld fatigue with finite elements.
Question
Which chassis welds carry the most stress under the declared service load, and what fatigue life do they have? What changes if the part moves to another steel?
Method
Finite elements with finite elements; hot-spot stress fatigue to IIW [3] and EN 1993-1-9 [4].
Verify
Error < 0.3 % against the exact solution of a cantilever plate with the fine mesh (h/48); mesh convergence in every demonstration.
Result
Demonstration on a generic tipper chassis: weld stress and fatigue with the declared load as a hypothesis.
Limitations
The service load is a declared hypothesis, not a measurement. Feeding the DEM load directly into the fatigue calculation is under development.
