Material motion and load in a rotary drum

Demonstration on generic geometry: industrial rotary drum with material motion and load on lifters with DEM. (1/3)Demonstration on generic geometry: industrial rotary drum with material motion and load on lifters with DEM. (2/3)Demonstration on generic geometry: industrial rotary drum with material motion and load on lifters with DEM. (3/3)
Demonstration on generic geometry: industrial rotary drum with material motion and load on lifters with DEM.
Question
How does the material move inside a rotary drum and what load does it leave on lifters, paddles and shell?
Method
DEM with implementación de referencia DEM and a calibrated material [1]; finite elements for the lifter and end-plate welds to EN 1993-1-9 and IIW; wear model for the shell.
Verify
+7 % / −2 % against the slump test of Li et al. (2021) in slump and spread.
Result

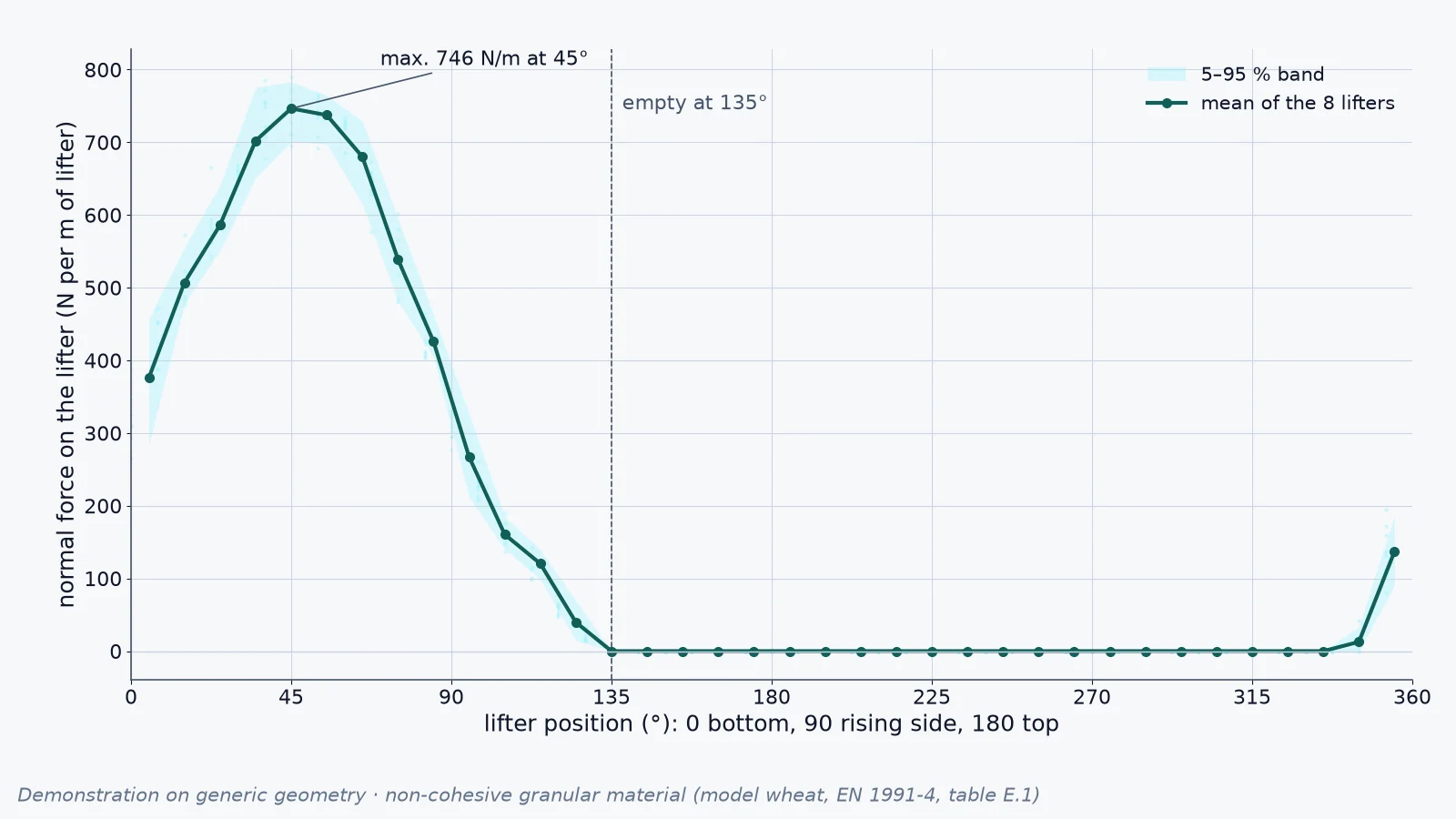

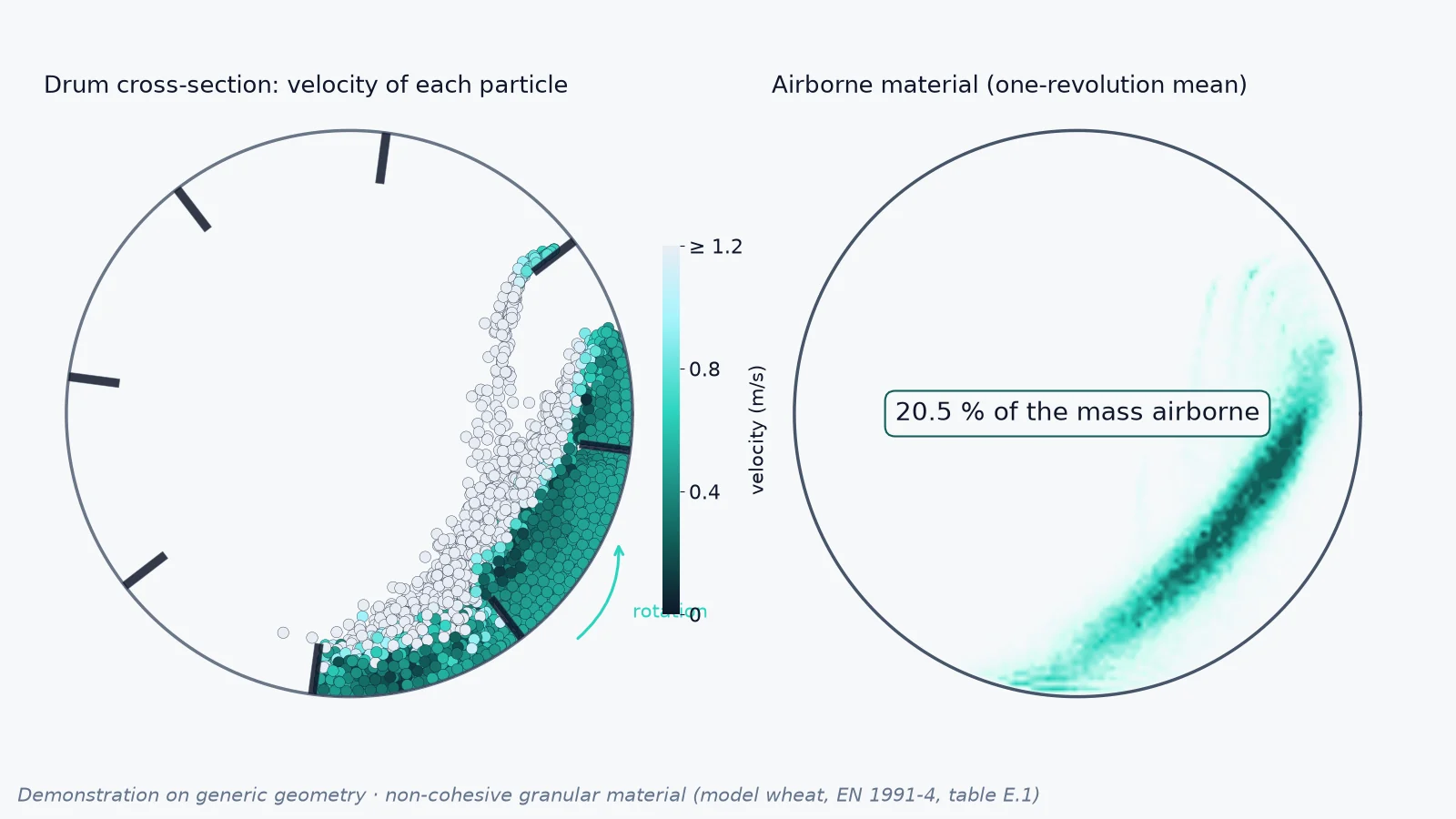

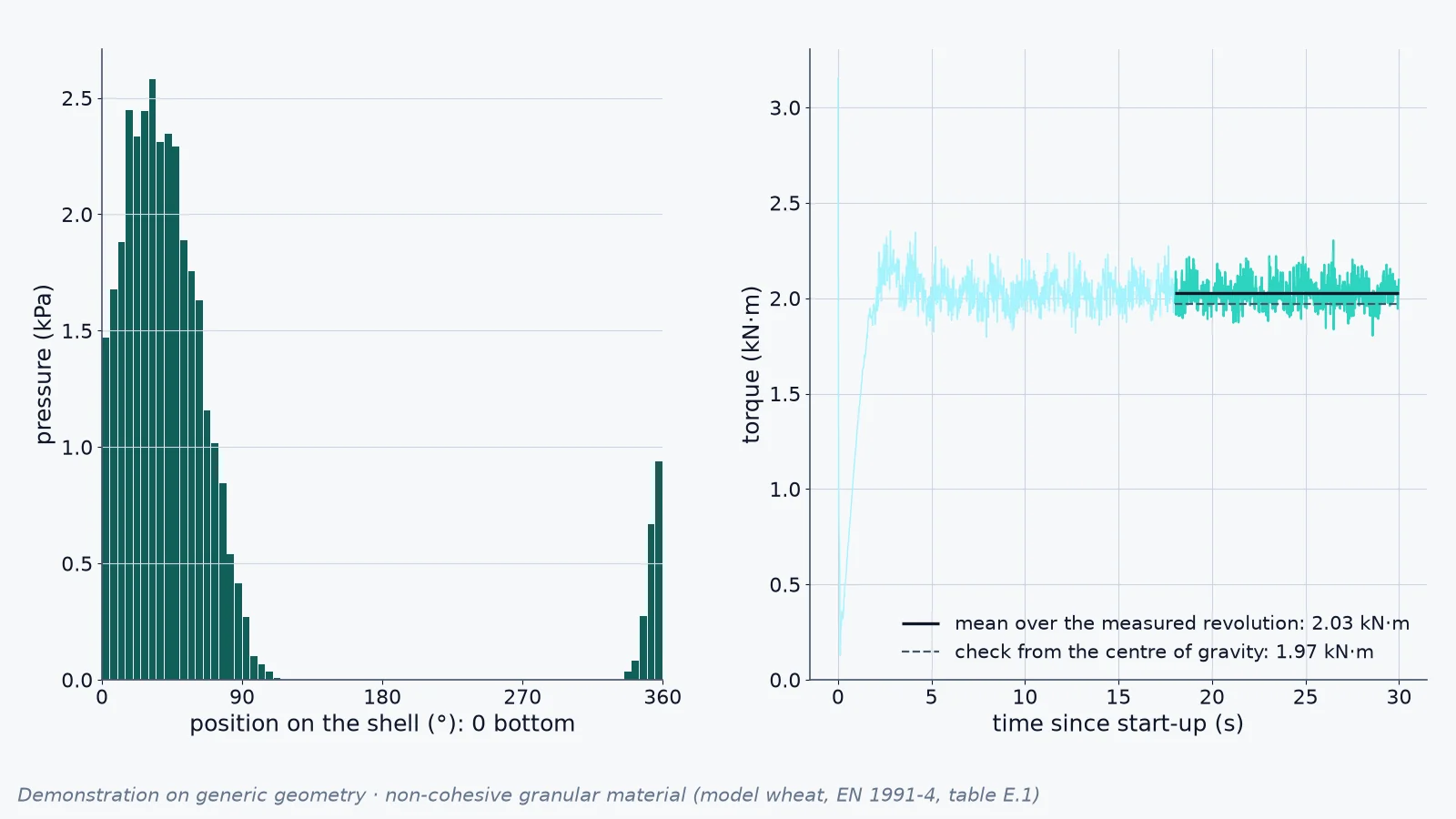

Generic 2.0 m rotary dryer at 5 rpm with straight lifters: material motion and lifter load.
Limitations
Today each engine is checked on its own; feeding the DEM load directly into the fatigue calculation is under development.
